Multi-Door Access Controller

Access-8002

Model ACCESS-8002 Unit 1 Unit
Price on request
Available on request
  • 2 Door Controller
  • Card Capacity : 20,000
  • Communication : TCP/IP

The Access-8002 is a robust access control panel designed to manage up to 20,000 cards with an event buffer capacity of 100,000 events. It supports TCP/IP communication with 10M/100M adaptive speed and controls two doors with flexible entry and exit options.

Price on request

Pricing depends on your site, quantity and configuration. Tell us what you need and we'll send a quote - usually within one working day.

Ask on WhatsApp
  • GST invoiceAdd your company GSTIN to claim input tax credit
  • Genuine product & manufacturer warrantyNo returns or replacements · warranty by the manufacturer · Policy
Need help choosing?

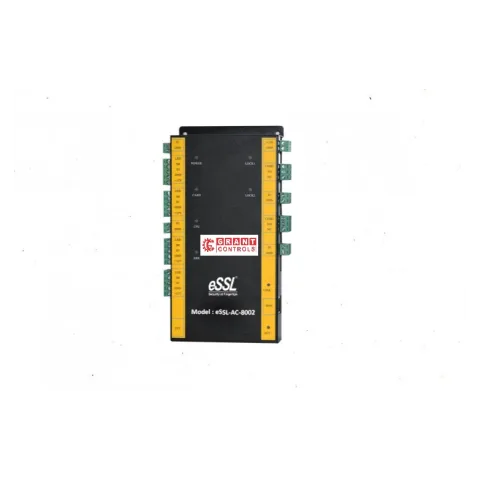

✪ Access-8002 – Access Control Panel

The Access-8002 is a robust access control panel designed to manage up to 20,000 cards with an event buffer capacity of 100,000 events. It supports TCP/IP communication with 10M/100M adaptive speed and controls two doors with flexible entry and exit options.

Card Capacity 20,000
Event Buffer 100,000
Communication TCP/IP 10M/100M Adaptive

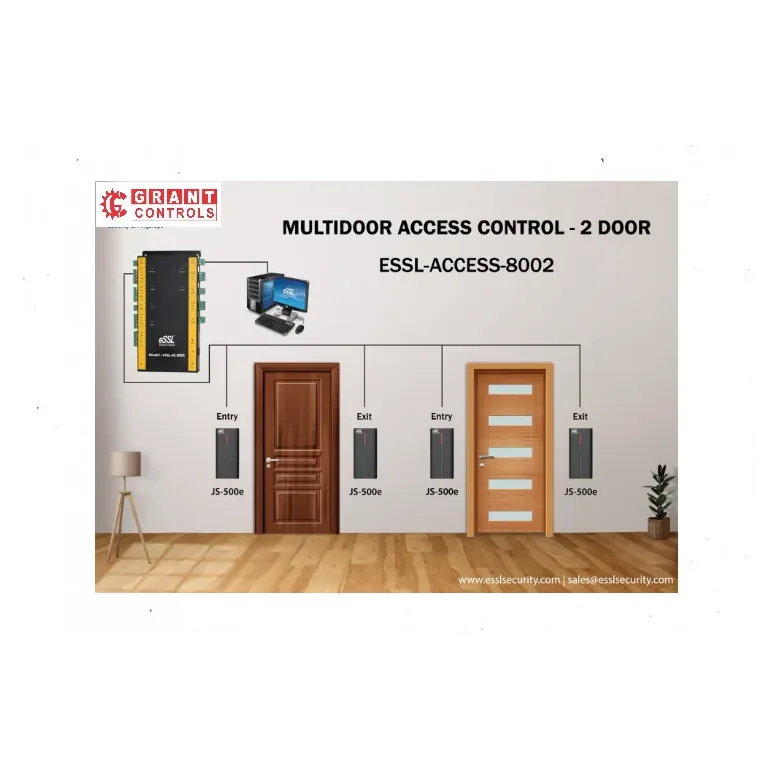

Function Description Controls 2 doors; Entry via card swipe & exit via buttons, or both entry & exit via card swiping
PCB Board Size 21.9 × 12.2 × 3.4 cm
Controller Case Size 273 × 228 × 65 mm
Power Supply 12V DC, 4–7A
Power Consumption (Circuit Board) < 200 mA
Reader Input Format Wiegand 26/34
Card Readers Supported 4 (2 In & 2 Out)
Door Control Output 4
Operating Temperature -40 °C to 70 °C
Operating Humidity 10–90% RH, No Condensation
Database Type MS Access / MS SQL1

Designed for reliable and flexible access management, the Access-8002 supports extensive card capacity and versatile door control with efficient power consumption and communication capabilities.

Model / SKUACCESS-8002
CategoryMulti-Door Access Controller
Pack / unit1 Unit
InstallationNot offered online - ask us
WarrantyManufacturer warranty (keep your invoice)
