DFMD-D4006
In and Out Count : AvailablePrice on request
Get a quoteDFMD-UPMD 004/006/008
Model DFMD-UPMD-004-006-008 Unit 1 Unit
Price on request
Available on request
- Indigenous- Multizone Door Frame Metal Detector
- 4,6,8 Zones Detection
- Floor Size Req. 910 x 590 mm , Weight : 75kg
The DFMD-UPMD 004/006/008 features a robust frame constructed from high-quality FRP material and uses the latest Continuous Wave Technology for precise metal detection. This microprocessor-based door frame metal detector is PC compatible and supports 4, 6, or 8 detection zones with auto...
Price on request
Pricing depends on your site, quantity and configuration. Tell us what you need and we'll send a quote - usually within one working day.
- GST invoiceAdd your company GSTIN to claim input tax credit
- Genuine product & manufacturer warrantyNo returns or replacements · warranty by the manufacturer · Policy
Specifications

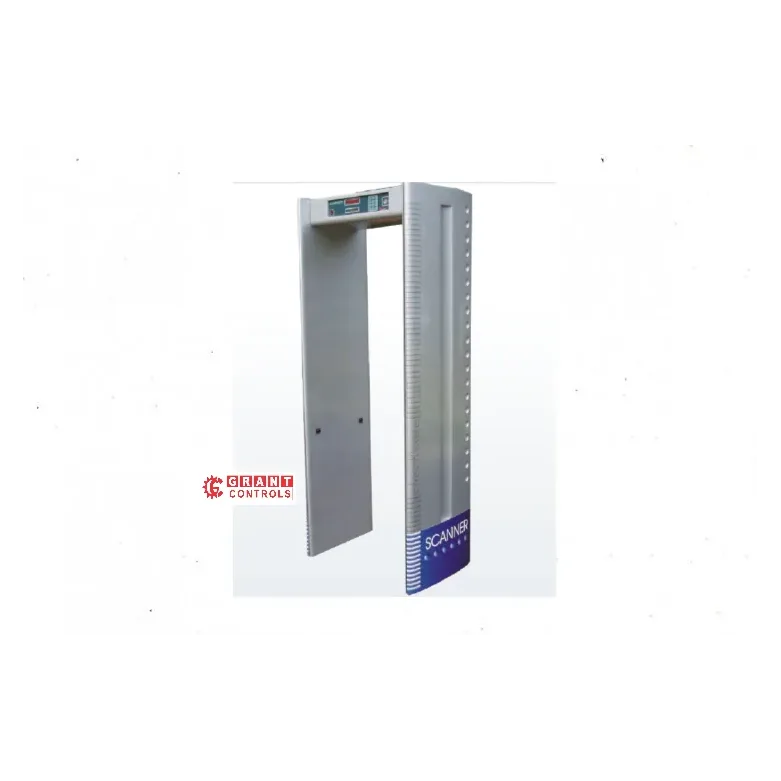

✪ DFMD-UPMD 004/006/008 – Advanced Door Frame Metal Detector
The DFMD-UPMD 004/006/008 features a robust frame constructed from high-quality FRP material and uses the latest Continuous Wave Technology for precise metal detection. This microprocessor-based door frame metal detector is PC compatible and supports 4, 6, or 8 detection zones with auto calibration and user-friendly keypad programming.
| Frame Material | FRP (Fiberglass Reinforced Plastic) |
| Detection Zones | 4 / 6 / 8 Zones |
| Calibration | Automatic |
| Traffic Counter | Infrared Occupancy Sensors for In/Out Counting |
| Detector Status | Continuously Active; No Metal Can Be Tossed Undetected |
| Ease of Use | Simple Operation with Self-Test & Fault Indicators |
| Display | Time, Counter, Program Settings, Sensitivity During Setup |
| Counter Modes | Multi-Mode: IN, OUT, Total IN & OUT |
| Sensitivity & Threshold | Digitally Controlled; Independent Zone Settings |
| Floor Space Required | 910 × 590 mm |
| Passage Clearance | 750 × 590 × 2000 mm |
| Overall Arch Assembly | 910 × 590 × 2170 mm |
| Weight | Approx. 75 Kg |
| Power Supply | 230 V AC ±10%, 50 Hz, 50 VA |
| Sensitivity Range | Settable 0–99 in steps; Detects objects ≥ 25 mm |
| Detection Capability | Ferrous & Non-Ferrous Metals |
| Certification & Safety | CE Certified; Cardiac Pacemaker Safe |
This advanced door frame metal detector combines high sensitivity, modular programming, and reliable traffic counting, ensuring comprehensive security with ease of operation.
Product details
| Model / SKU | DFMD-UPMD-004-006-008 |
|---|---|
| Category | Metal Detector |
| Pack / unit | 1 Unit |
| Installation | Not offered online - ask us |
| Warranty | Manufacturer warranty (keep your invoice) |
