Swing Gate Opener

FX RM680

Model FX-RM680 Unit 1 Unit
Price on request
Available on request
  • Max. Weight : 600kg
  • Power Supply : 230V AC 50Hz
  • Speed :10-15m/min

The FX RM680 is a reliable sliding gate motor designed for gates up to 600 kg. It features a 24V DC motor and operates efficiently across a wide temperature range with remote control functionality.

Price on request

Pricing depends on your site, quantity and configuration. Tell us what you need and we'll send a quote - usually within one working day.

Ask on WhatsApp
  • GST invoiceAdd your company GSTIN to claim input tax credit
  • Genuine product & manufacturer warrantyNo returns or replacements · warranty by the manufacturer · Policy
Need help choosing?

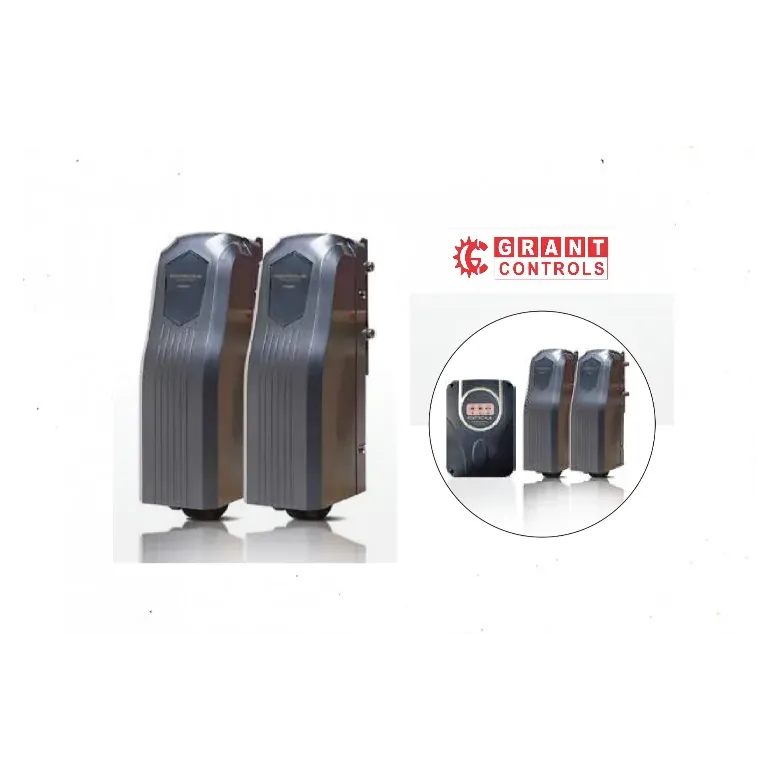

✪ FX RM680 – Sliding Gate Motor

The FX RM680 is a reliable sliding gate motor designed for gates up to 600 kg. It features a 24V DC motor and operates efficiently across a wide temperature range with remote control functionality.

✪ Technical Specifications:

Input Voltage 230V AC
Motor Voltage 24V DC
Maximum Gate Weight 600 kg
Operating Temperature Range -50°C to +50°C
Remote Control Distance 50 meters
Push Force 600 N
Speed 10–15 meters per minute
Drop Off Tolerance 0–300 mm
Opening Angle No limitation
Locking Method Automatic
Weight 23 kg
Model / SKUFX-RM680
CategorySwing Gate Opener
Pack / unit1 Unit
InstallationNot offered online - ask us
WarrantyManufacturer warranty (keep your invoice)
