Sliding Gate Opener

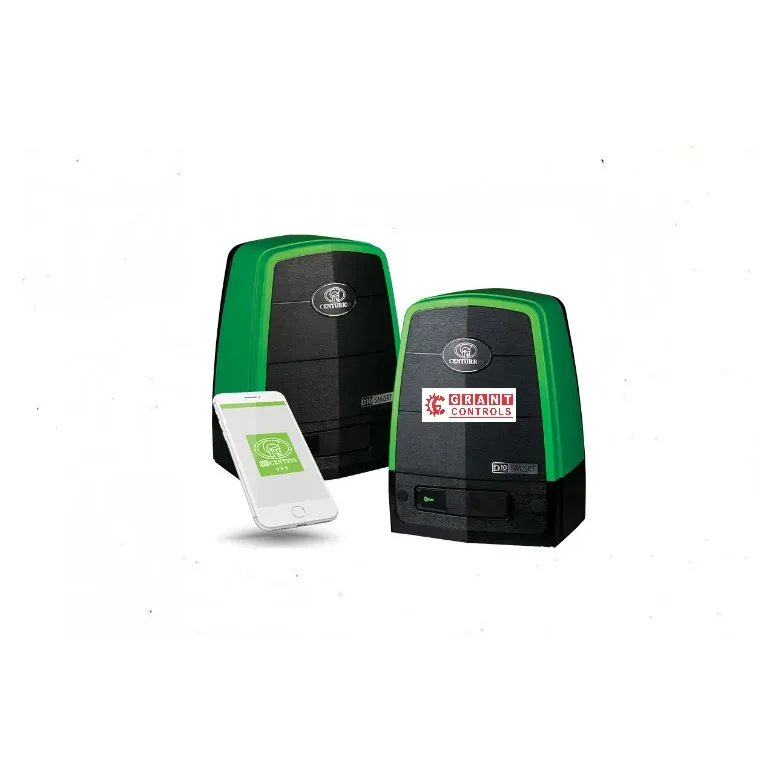

D10 Smart/Turbo Centurion SA

Model D10-SMART-TURBO-CENTURION-SA Unit 1 Unit
Price on request
Available on request
  • Gate mass : 1000kg
  • 24V DC Battery Operated
  • Gate speed : 26m/min

The D10 Smart/Turbo Centurion SA is a high-performance, battery-powered sliding gate motor designed for heavy gates up to 1000 kg. Offering two operation modes — Smart and Turbo — it provides flexibility with powerful torque, energy-efficient battery management, and a lockable manual override...

Price on request

Pricing depends on your site, quantity and configuration. Tell us what you need and we'll send a quote - usually within one working day.

Ask on WhatsApp
  • GST invoiceAdd your company GSTIN to claim input tax credit
  • Genuine product & manufacturer warrantyNo returns or replacements · warranty by the manufacturer · Policy
Need help choosing?

✪ D10 Smart/Turbo Centurion SA – Advanced Battery-Driven Sliding Gate Motor

The D10 Smart/Turbo Centurion SA is a high-performance, battery-powered sliding gate motor designed for heavy gates up to 1000 kg. Offering two operation modes — Smart and Turbo — it provides flexibility with powerful torque, energy-efficient battery management, and a lockable manual override for added security.

✪ Technical Specifications:

Input Voltage 240V AC ±10% @ 50Hz
Current Consumption (Mains) 200 mA
DX1 Battery Charger Output 1.3A @ 27.4V ±1%
Maximum Operations per Day 150
Duty Cycle (Mains Present) 50%
Motor Voltage 24V DC (7Ah Battery)
Motor Power Supply Battery-driven (Standard Capacity - 2 × 12V)
Current Consumption (Motor at Rated Load) 13A
Maximum Gate Mass 1000 kg
Maximum Gate Length 100 meters
Gate Speed (D10 Smart) Up to 26 meters per minute
Gate Speed (D10 Turbo Smart) Up to 45 meters per minute
Manual Override Lockable with key release
Battery Backup Operation Supported with 7.2Ah batteries
Operating Temperature Range -15°C to +50°C
Packaging Dimensions 325mm (W) × 244mm (D) × 445mm (H) (excludes rack and battery)

The D10 Smart/Turbo offers versatile, high-capacity sliding gate automation with efficient battery usage, rapid operation modes, and secure manual controls — perfect for heavy-duty applications.

Model / SKUD10-SMART-TURBO-CENTURION-SA
CategorySliding Gate Opener
Pack / unit1 Unit
InstallationNot offered online - ask us
WarrantyManufacturer warranty (keep your invoice)
