Sliding Gate Opener

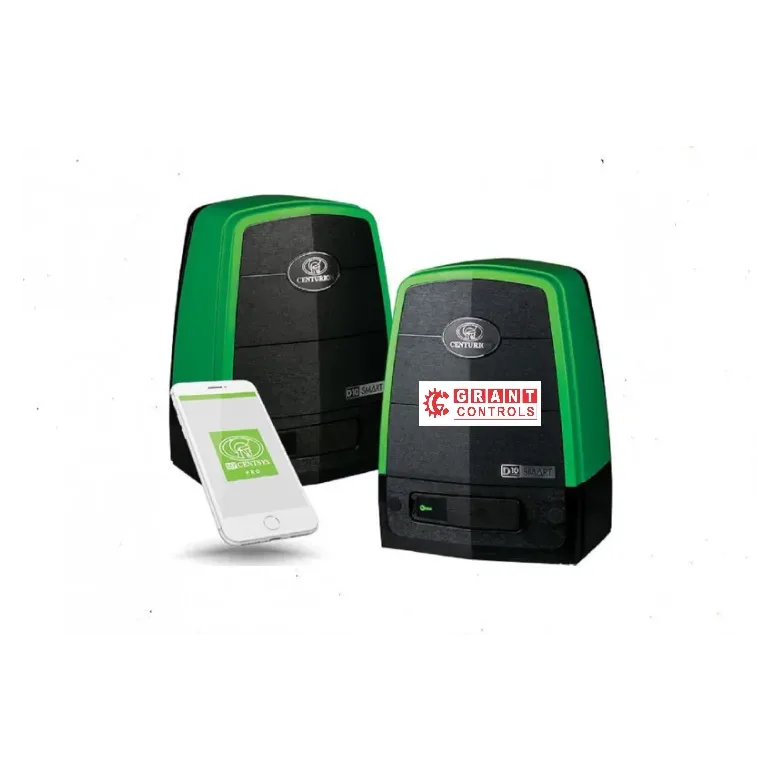

D5 Smart Centurion SA

Model D5-SMART-CENTURION-SA Unit 1 Unit
Price on request
Available on request
  • Gate mass : 500kg
  • 24V DC Battery Operated
  • Gate speed : 35m/min

The D5 Smart Centurion SA is a state-of-the-art battery-powered sliding gate motor featuring smart power management and reliable operation for gates up to 500 kg and 100 meters in length. Equipped with a lockable manual override and robust battery backup, it is designed for optimal performance...

Price on request

Pricing depends on your site, quantity and configuration. Tell us what you need and we'll send a quote - usually within one working day.

Ask on WhatsApp
  • GST invoiceAdd your company GSTIN to claim input tax credit
  • Genuine product & manufacturer warrantyNo returns or replacements · warranty by the manufacturer · Policy
Need help choosing?

✪ D5 Smart Centurion SA – Advanced Battery-Driven Sliding Gate Motor

The D5 Smart Centurion SA is a state-of-the-art battery-powered sliding gate motor featuring smart power management and reliable operation for gates up to 500 kg and 100 meters in length. Equipped with a lockable manual override and robust battery backup, it is designed for optimal performance in varied environments.

✪ Technical Specifications:

Input Voltage 90V – 240V AC ±10% @ 50Hz
Current Consumption (Mains) 200 mA
DX1 Battery Charger Output 1.3A @ 27.4V ±1%
Max Operations per Day 150
Duty Cycle (Mains Present) 50%
Motor Voltage 24V DC (7Ah Battery)
Motor Power Supply Battery-driven (Standard: 2 x 12V)
Current Consumption (Motor at Rated Load) 13A
Maximum Gate Mass 500 kg
Maximum Gate Length 100 meters
Gate Speed Up to 35 meters per minute (varies with load)
Manual Override Lockable with key release
Battery Backup Operation Supported with 7.2Ah batteries
Operating Temperature Range -15°C to +50°C
Packaging Dimensions 325mm (W) x 244mm (D) x 445mm (H) — excludes rack and battery

The D5 Smart Centurion offers advanced battery management and powerful gate operation, ensuring smooth, reliable sliding gate control with manual safety features and wide temperature tolerance.

Model / SKUD5-SMART-CENTURION-SA
CategorySliding Gate Opener
Pack / unit1 Unit
InstallationNot offered online - ask us
WarrantyManufacturer warranty (keep your invoice)
